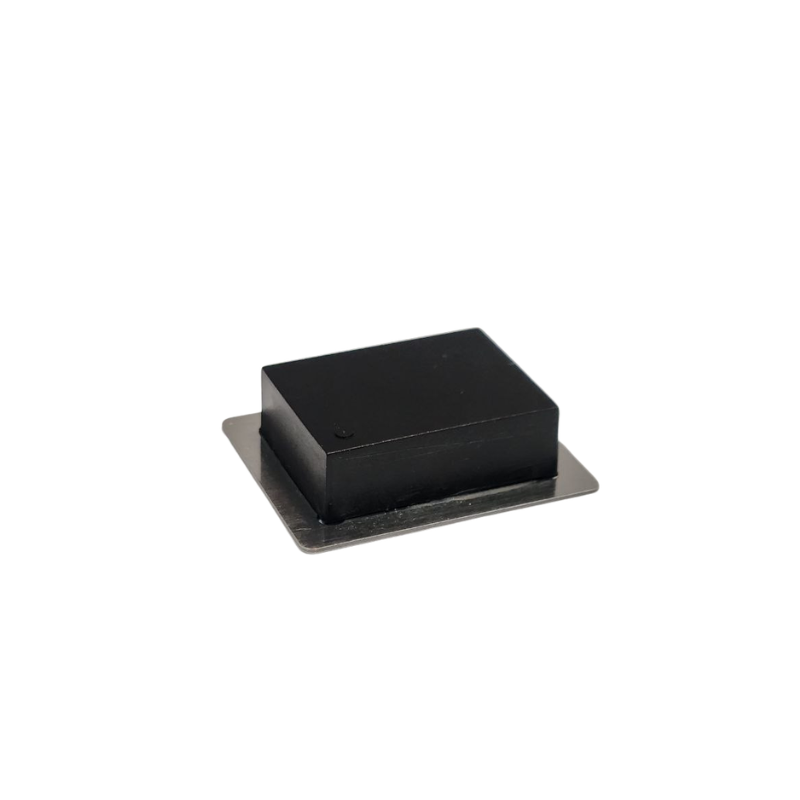

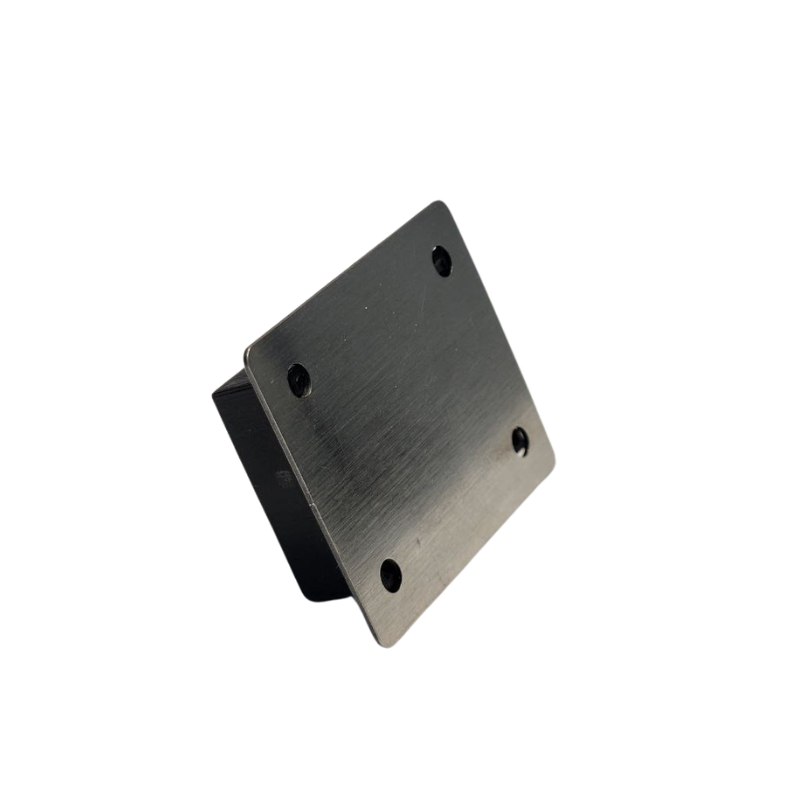

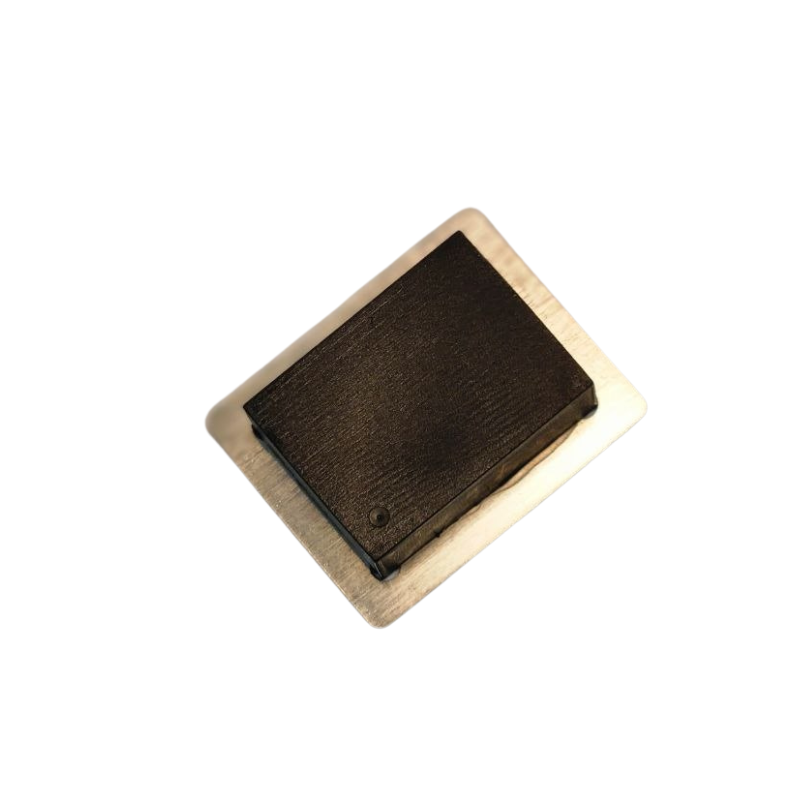

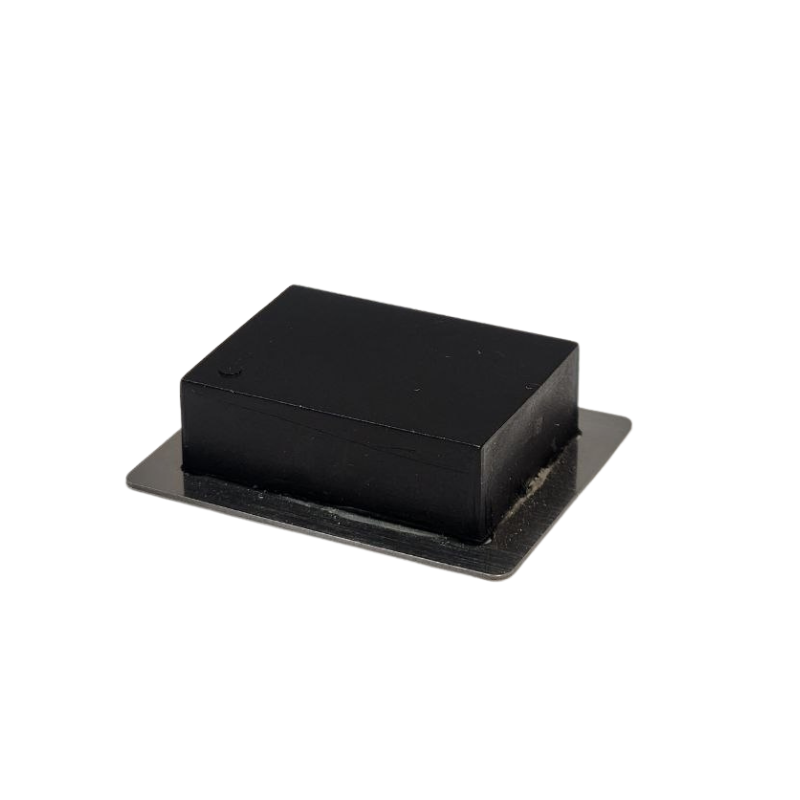

- The on-metal RFID tag is a specialized transponder designed to overcome challenges of using RFID tags on metal surfaces. It has an incorporated metal base that makes it immune to detuning on metal surfaces, allowing a more reliable and consistent read range on any surface.
- The tag works on both metallic and nonmetallic surfaces.
- The tag is designed to work with standard HF RFID readers.
- IC: NXP ICODE SLIX
- Standards: ISO 18000-3, ISO 15693
- Operating Frequency: 13.56 MHz (HF)
- User Memory: 1024 bits (32 blocks)
- Read/Write Endurance: 100,000 cycles
- Data Retention: Minimum 50 years at 55°C (131°F)
- Storage Temperature: -15°C to 55°C (5°F to 131°F)
-
Security Features:
- EAS (Electronic Article Surveillance)
- AFI (Application Family Identifier)
-
Dimensions:
- Width: 36 mm (1.42")
- Height: 29 mm (1.14")
- Depth: 10.5 mm (0.41")
